homemade wood pellet machine

Producing a homemade wood pellet machine is technically feasible; nonetheless, it is neither of powerful price nor a practical choice. To achieve the ability of consistently and efficiently converting wood into fuel pellets need some fairly heavy engineering to cope with the forces involved.
Producing Pellets with a Tiny Homemade Wood Pellet Machine
A tiny homemade wood pellet machine may be employed inside the residence. They are of a top quality, and quite reasonably priced as the cost is lower than the typical ones.

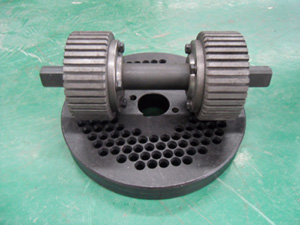

Little homemade pellet machines normally are all flat die pellet presses. The flat die pellet presses can be a vertical style. The rollers sit over the die, applying pressure directly to the surface of the die. Owing to this design, either the roller shell or the die will likely be stationary, meanwhile the other will rotate. Material enters from the above, and falls between the rollers and the die. The pellets come through the bottom of the die, and are cut to length via a knife. Pellet length is much more crucial than many individuals consider. That some pellet stove augers can't manage with oversized pellets can result in harm to the auger or basically block and cause the stove to quit operating inappropriately.

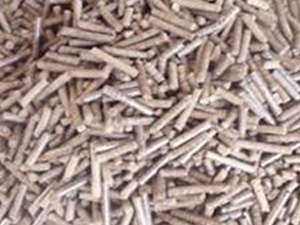

rollers-and-the-die     pellets
One view of a lot of people working in the pellet production marketplace is that pellet production is far more of an art than a precise science. It is because each raw material has its own special characteristics. Component of the differences lies in the percentage of natural lignin discovered inside the raw material. Lignin will be the natural binding agent in the process of pelleting: under the heat and pressure of the homemade wood pellet machine, the lignin will melt. When the pellet is forming, the lignin will cool down to generate pellets.

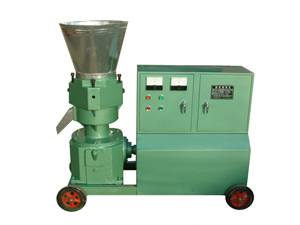

Biomass Homemade Wood Pellet Machines pellet-mill

To produce wood pellets, the raw material must be suitable for the wood pellet machine, so firstly it ought to be ready properly. For example, if you want to generate 6mm pellets, whose size most pellet stoves use, you have to ensure the machine having a raw material of 6mm or below, so sawdust will be proper. However, to wood chips, they need more process. Soon after wood has been chipped, the equipment to decrease the chips further in size is often a hammer mill. A hammer mill works on the principle of attrition. Via the speed impact of the hammers on the wood chips, the chips are shattered into smaller particles. To create particles below 6mm, a screen is placed inside the hammer mill. Consequently no particles can escape the hammers until they're below 6mm in size.
When the material is in a suitable size, typically it should be dried before entering the wood pellet machine- it is especially accurate if the wood chips are from fresh virgin wood. For small scale pellet production, one of the most practical and cost-effective way of drying the material is to apply a flash dryer. Flash dryers are also recognized as pipe dryers or air existing dryers. The hot air is generated inside the stove when burning wood logs, chips or pellets. Inside the stove there's a series of pipes with expansion chambers. A fan pulls the wet material via the pipe, and then exposes the wet particles to the hot air from the stove. At the end of the pipe program a cyclone separates the dry material.
