Flat Die Pellet Mill

The ZLSP D-Type series of Flat Die Small Pellet Mill are a kind of small pellet machines,  which are made of a set of press roller, flat die, feeder and gear bearings equipped with electrical motor, diesel engine, tractor and gasoline powerd. You can select a proper flat die pellet mill depending on your practical needs. The pellets are made from powder materials under great force created between flat die and press rollers. Compared with ring die pellet mills, flat die small pellet mills are proper for small scale pellets production. For instance, you can make your own pellets with flat die pellet mil at home or on the farm such as feed supporting battery cages. Moreover, our ZLSP-D type flat die pellet mill can process a wide range of raw materials like agro-forestry wastes and other biomass materials into biomass pellets.

Flat Die Small Pellet Mill with Electric Motor

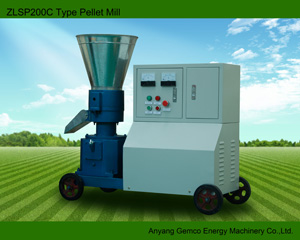

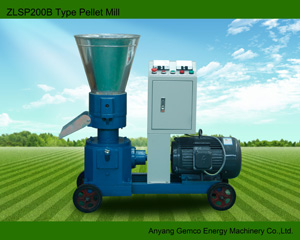

ZLSP200B flat die small pellet mill ZLSP200C flat die pellet mill
ZLSP200B Flat Die Pellet Mill ZLSP 200C Small Flat Die Pellet Mill

Technical Parameters:

Model Capacity Power Net Weight Outside Dimension(mm)
ZLSP-150B 50-100kg/h 3phase5.5kw 95kg 800*450*700
ZLSP-200B 80-120kg/h 3phase7.5kw 200kg 1000*480*930
ZLSP-230B 120-200kg/h 3phase11kw 290kg 1180*540*1000
ZLSP-260B 160-250kg/h 3phase15kw 320kg 1240*540*950
ZLSP-300B 250-400kg/h 3phase22kw 350kg 1300*560*1100
ZLSP-150C 60-110kg/h 3phase5.5kw 105kg 1000*480*780
ZLSP-200C 80-120kg/h 3phase7.5kw 210kg 1050*550*830
ZLSP-230C 120-200kg/h 3phase11kw 290kg 1200*560*950
ZLSP-260C 160-250kg/h 3phase15kw 340kg 1240*580*1000
ZLSP-300C 250-400kg/h 3phase22kw 425kg 1300*620*1100

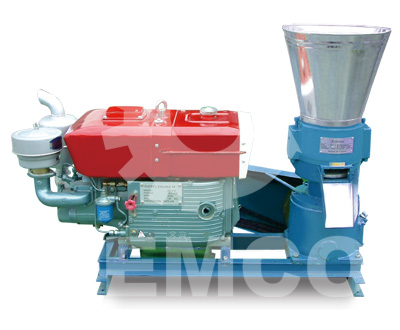

Flat Die Pellet Mill with Diesel Engine

flat die pellet mill with diesel engine

Technical Parameters:

Model Capacity Power Net Weight Outside Dimension(mm)
ZLSP-150A 50-100kg/h 8Hp 180kg 1000*500*750
ZLSP-200A 80-120kg/h 15Hp 210kg 1460*750*900
ZLSP-230A 120-200kg/h 22Hp 280kg 1560*850*1000
ZLSP-260A 160-250kg/h 30Hp 330kg 1200*500*1070
ZLSP-300A 250-400kg/h 55Hp 410kg 1220*600*1000

Gasoline Flat Die Pellet Mill

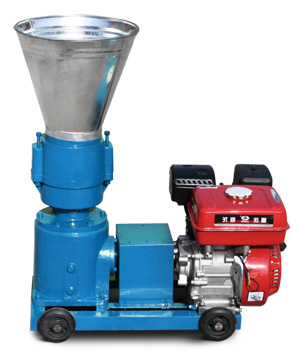

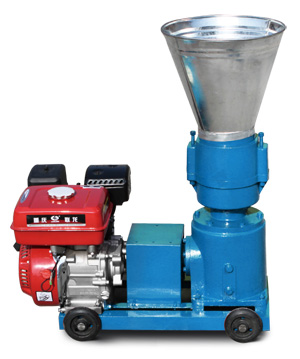

120 Q gasoline flat die pellet mill 150Q gasoline flat die pellet mill
120Q Gasoline Flat Die Pellet Mill 150Q Gasoline Flat Die Pellet Mill

Technical Parameters:

Model Capacity Power Net Weight Outside Dimension(mm)
ZLSP-120Q 40-80kg/h 7.5Hp 120kg 900*500*730
ZLSP-150Q 50-100kg/h 10Hp 180kg 1000*500*750

PTO Flat Die Pellet Mill

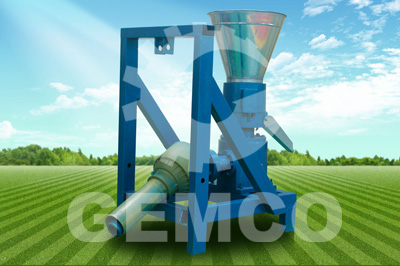

PTO flat die pellet mill

Technical Parameters:

Model Capacity Power Net Weight Outside Dimension(mm)
ZLSP-150P 50-100kg/h ≥8Hp 90kg 900*540*1020
ZLSP-200P 80-120kg/h ≥15Hp 130kg 1000*540*1020
ZLSP-230P 120-200kg/h ≥22Hp 175kg 1000*540*1020
ZLSP-260P 160-250kg/h ≥30Hp 235kg 1050*540*900
ZLSP-300P 250-400kg/h ≥55Hp 305kg 1100*540*1000

Raw Materials for Flat Die Pellet Mill

In order to make pellets with the flat die pellet mill, the biomass materials should be wood wastes, sawdust, corn stalk, peanut shells, etc. Wood wastes can be all kinds of raw materials, such as spruce tree waste, pine tree waste and other sawdust waste, tree branches and shavings or fibre from wood working factory and furniture manufacturers. The pellets are widely used as green fuel for heating in pellet stove or cooking in pellet cooking stove at home.

Detailed Parts of Flat Die Pellet Mill

Roller Parts: rollers are the most important parts for making pellets. The material of the rollers must be excellent endurance and not easy to be broken. The roller is made from high quality alloy metal. Compared with the traditional roller press , our flat die pellet press has two pairs of rollers that enlarge the capacity of pellets production.

Details of Press Rollers:

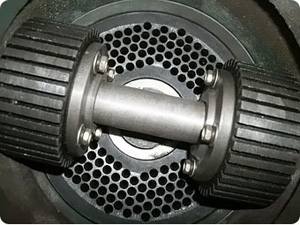

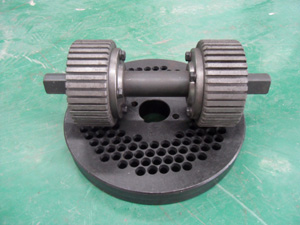

press rollers press rollers installation

Die Parts: flat die has many holes for extruding wood materials into the uniformed pellets. We offer ready-made flat die pellet mill with die holes with the diameter range of 6-8 mm for your choice. Otherwise, we can produce small pellet mill with customized die diameter as required. Therefore, the flat die pellet mill is more suitable for home use and small scale pellets production.

Flat Die Processing:

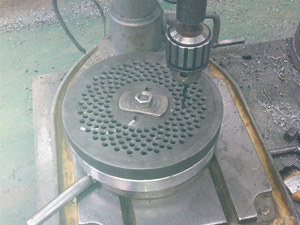

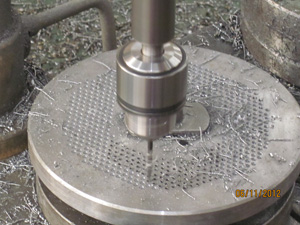

processing of flat die checking flat die
