small biomass pellet plant

When you want to make pellets, you may need some equipment like hammer mill, material mixer, screw feeder, pellet machine, vibrating screen, etc. However, for the small scale wood pellet manufaturers, it is not an easy task to combine these facilities all together and place them in a limited space.
Luckily, GEMCO has developed a new type integrated small biomass pellet plant for making biomass materials like sawdust, wood chips, straw, hay, sunflower husk, etc. into pellets fuel.

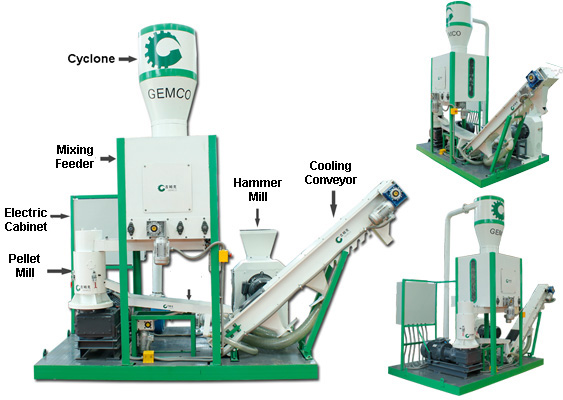

The MPL300 small biomass pellet plant is a complete pellet production line that includes hammer mill, cyclone separator, material mixing & storage bin, screw feeder, ZLSP-300B R-type pellet machine, water tank, vibrating screen, bucket conveyor, foundation frame and electric cabinet.

small biomass pellet plant

Main technical data of this small biomass pellet plant

Model MPL300
Capacity 250-350kg/h (or 350-450kg/h for ZLSP-400B pellet machine)
Pellet diameter 6-12mm
Power 41.25kw
Size 3500*1960*3500mm

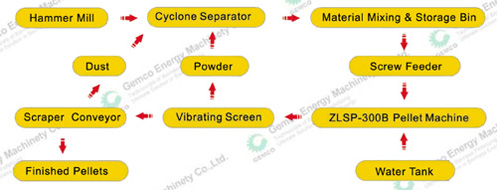

The raw material goes via the following processes:

processs of small biomass pellet plant

Detailed information of small mobile pellet plant main parts

Ⅰ Crushing system
Hammer Mill:

It's with 15 hammer blades, by changing the different position of the blades, it's suitable for crushing woody or biomass or forage material with size less than 20 mm (diameter), the size of the output crushed material can reach diameter 3-5mm.

Pneumatic Conveying Unit:

This unit includes one 2.2kw air blower, wind pipeline and cyclone separator. It will transport the crushed material into bin for mixing and storage. It's connected with vibrating screen and bucket conveyor with semitransparent soft pipes to cool the pellets, and collect the powder and dust.

hammer mill
Hammer Mill
ⅡMaterial Mixing, Storage & Conveying Section
Material Mixing, Storage Bin:

It's with 1m3 volume, its shell is made of 2.5 mm steel plate. There are two portholes on both sides for monitoring and observation. Four paddle type mixers is driven by one 0.75KW motor. The highest material level for this bin is at 800mm from the bottom.

Screw conveyor:

The input port for mixed material is at the bottom of the bin. It's 112mm in diameter, 1023 mm long. It is to feed the mixed material into the pellet mill, and is driven by frequency conversion speed controlled motor, 0.18 KW, frequency conversion range is 30~60 Hz.

storage bin
Storage Bin
Ⅲ Pelletizing Section
Pellet Machine:

This ZLSP-300B R-type pellet machine makes 0.4 ton wood pellets per hour by using pure sawdust. The water adding system is connected and available to adjust the moisture content of the mixed material. We can make 6, 8 mm pellets (diam.).

Water Tank

This tank can carry 100 L water. The water pump is at 24V, capacity : 5L/min, water discharge pressure: 8.5kg, flow meter capacity: 0.2-2GPM

ZLSP-300B R-type pellet machine
ZLSP300B R-type pellet machine
Ⅳ Sieving & Pellet Conveying Section
Vibrating sieve:

3.5*3.5mm Mesh, with 0.37KW power. The size of the mesh can be changed according to your requirements. One φ45mm soft pipes is connect to collect the powder and dust.

Scraper conveyor

It's driven by chain, the scraper size is at 145mm. The size for single section is 2436*437*484 mm. The length and height of this conveyor can be extended by adding and connecting one extra section. There are five positioning joints at the end of the conveyor, you can adjust the height and angle of the conveyor easily. Two φ100mm soft pipes is connect to cool the pellets.

vibrating sieve

Vibrating Sieve
V Auxiliary Equipments
Steel structureABS:

With Anti-skidding steel floor

MCC control centre

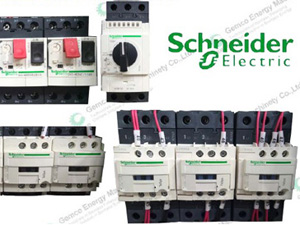

The electronic components in this system are made by Schneider Electric with international standard. The manual operation control system is adopted. You can easy control this plant according to your demands. Two frequency converters are used to control the speed of the Screw Conveyer and Scraper Conveyor. The control cabinet is with dust prevention. The emergency stop and smart power lock is adopted.

Schneider Electric components

Schnerider Electric components

By using this small biomass pellet production line, you can make your own pellets with only a little man power. Also because of its compact size, it only needs a small space to place. With the adopted advanced technology, this biomass pellet plant is popular among its users in many countries. We believe it will generate excellent result for you.
