Ring Die Pellet Mill

Ring Die Pellet Mills are widely used to a large scale wood pellets production line for light industrial and commercial purposes. They are not as widespread as those with flat dies due to the increased complexity of machines and higher cost. As the die's name suggests, the ring die has a wide cylindrical shape and it is mounted vertically. A surge bin is used to feed biomass materials through a variable speed conditioner before being distributed via the pelleting machine door. A screw auger is useful at this last step of putting the materials in the pellets machine chamber.

Ring Die Pellet Mills and Details

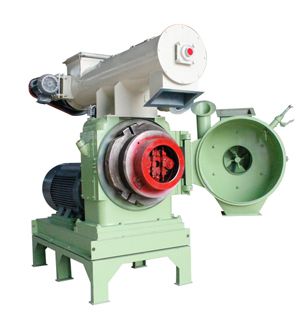

ring die pellet mill ring die pelletizer machine

Advantages of Ring Die Pellet Mills

There are two main distinct points of ring die: it generates less wear and tear, since both the inner and outer edges of the roller traverse the same distance; and it is also more energy efficient than a flat die pellet mill design. Roller slip during the pelleting process brings extra friction, but this extra friction is an accelerating element in the production of quality wood pellets due to the additional heat.

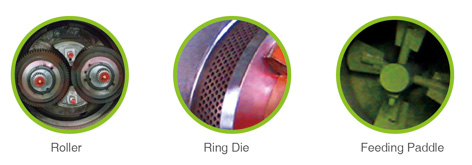

Details of Ring Die Pellet Machine

details of pellet machine

Main Technical Parameters of Ring Die Pellet Mills

Type Capacity Power Ring Die Capacity Pellet Specifications
KMPM42 1-1.5t/h 95kw 800-1000t 6mm/8mm/10mm/12mm/14mm
KMPM508 1.5-2t/h 115kw 1000-1200t 6mm/8mm/10mm/12mm/14mm
Type Forming rate Ability to operate Noise Dimensions
KMPM42 ≧95% ≧20h ≦88dB[A] 3300*1200*3943(mm)
KMPM508 ≧95% ≧20h ≦90dB[A] 3450*1470*4445(mm)
Type Weight Pellet energy consumption Main motor speed
KMPM42 ≈3t ≈85° 1000r/min
KMPM508 ≈4.5t ≈80° 1000r/min
