straw pelletizing mill


Are you still worrying about how to deal with straw in the farm? Do you want to get a straw pelletizing machine from us and harvest the success? Please browse our websites about straw pellet mill. Straw is a common biomass wastes for farmer that can be seen everywhere in the world. Usually, people always burn it once when crops are harvested. But now, it has a new and important usage, which is processed into straw pellets as a new type of biomass fuel by the straw pellet mill. Then the straw pellets can be used for family heating and cooking.

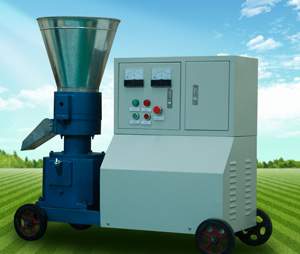

Straw Pelletizing Mill with Electric Motor

straw pelletizing mill straw pellet mill
ZLSP200B Straw Pelletizing Mill ZLSP300C Straw Pellet Mill

Technical Parameter

Driven Model Power Capacity Weight(NW/GW) Packing Size
Electric Power ZLSP200B 7.5KW (3phase) 80-120 kg/h 215/245kg 950*450*1050mm
170-270 lbs/h 475/540lbs 37*18*41 inch
ZLSP300B 22KW (3phase) 250-350 kg/h 540/575kg 1350*750*1400mm
550-770 lbs/h 1190/1268lbs 53*30*55 inch
ZLSP400B 30KW(3phase) 350-450 kg/h 770/810kg 1400*800*1450mm
770-990 lbs/h 1698/1785lbs 55*31*57 inch


Press Rollers and die are the most important components of the straw pellet mill. The procedure of pelletizing will be finished between the compress of them. To process straw into pellets, firstly you need crush it into fragment. The moisture should be controlled around 15%, or it will be hard for the fragment being solidified. Size of fragment should be no longer than the diameter of holes on the die.

Put the fragment into the feeder hopper vertically. Then the straw fragment will enter the space of upper box. Here the straw fragment will be pressed under the force between rollers and die into holes on the die. Then straw pellets will get out of the discharge hole after cut into uniform size. When pellets cool down, they are available to use or bagged for storage and sale.

Straw Materials and Straw Pellets

straw materials straw pellets
