rotating roller flat die pellet mill

Rotating roller flat die pellet mill is designed for various biomass materials specially. Rotating roller pellet mill is suitable for processing sawdust, wood shavings, rice husk, straw, grass, alfalfa, peanut shells etc. The ZLSP R-Type series of the flat die pellet mill is the GEMCO's latest development in the fields of biomass energy production. And this type of machine has gained a good reputation due to its efficiency, durability and safety since putting into market. Furthermore, it has been successfully adapted to both domestic and overseas markets.

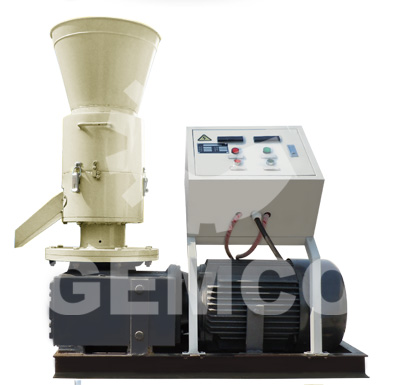

Rotating Roller Flat Die Pellet Mill with Electric Motor

rotating roller flat die pellet mill

Technical Parameters:

Model Capacity Power Net Weight Outside Dimension(mm)
ZLSP-200B 80-120kg/h Three phase 7.5 215kg 950*450*1050
ZLSP-300B 250-350kg/h Three phase 22 540kg 1350*750*1400
ZLSP-400B 350-450kg/h Three phase 30 770kg 1400*800*1450

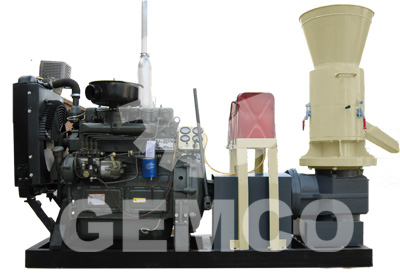

Rotating Roller Flat Die Pellet Mill with Diesel Engine


rotating roller flat die pellet mill with diesel engine

Technical Parameters:

Model Capacity Power Net Weight Outside Dimension(mm)
ZLSP-200A 80-120kg/h 15Hp 320kg 1460*950*1100
ZLSP-300A 250-350kg/h 36Hp 850kg 1100*700*2480
ZLSP-400A 350-450kg/h 55Hp 1010kg 1300*800*2600

Working Principle
The design concept of rotating roller flat die pellet mill has a rotating roller with a stationary die. When the pellet mill start to work, the die is stationary while the rollers are rotating. The great force between rollers and die will press raw materials into wood pellets. There are two strong points for rotating roller pellet mill. For one hand,  the rotating roller design prolong the service life of pellet mill, which is about 2000 hours. For another hand, the wood pellet quality and length are much smoother and longer.

rotating roller rotating roller and flat die press roller installation
Rotating rRoller Rotating Roller and Flat Die Rotating Roller Installation

Flat Die Pellet Mill Models:
Final pellet diameter:  6-10 mm
Material of flat die & roller:  Alloy steel
Life of flat die & roller: min 800 hours
QA: the usable life of motor and gear box is 1 year; the upper body and box of main shaft is five years; for others not stated here: 1 year.

You can get more information about our rotating roller flat die pellet mill through below two videos from YouTube.
